產品介紹
本系列充電器產品是一種新型的數字控制、高效率開關電源技術，該機具有以下特點:
●高速微電腦芯片智能控制，響應速度快，控制精度高。
●高清LCD液晶顯示，電壓、電流、功率、狀態等參數，內容清晰，操作簡單。
●輸出電壓、電流可調;恒流/恒壓自動切換，輸出電壓高，電流質量好，紋波系數低。
●功率密度高、效率高、體積小。
●具有輸出欠壓、過壓、過流、短路、過熱、電池反接等全方位保護電路，確保設備能長期穩定運行。
●智能風機控制電路，根據工作溫度啟動或關閉風機，有效延長風機壽命。
●充電過程全自動，無需人工操作，電池充滿后充電器自動停止充電。
●可選通訊接口控制，方便充電管理。
●本產品廣泛用于大容量(鉛酸或鋰離子)電池組充電，特別適用于電動叉車、AGV汽車、電動觀光車、電動巡邏車、電動高爾夫球車、電動拖拉機、電動船、電動洗車、電動機器人、電動升降平臺、船舶備用電池充電、電動運輸車等電動車輛電池循環充電。
Product main technical parameters
● Input voltage: single-phase AC 220V±15%; 50/60 Hz.
● Output charging voltage: DC 12V, 24V, 36V, 48V, 60V, 72V, 80V, etc. (Other parameters can be customized).
● Output charging constant current value: DC 10A, 20A, 30A, 40A, 50A, 60A (Other parameters can be customized)
● Output accuracy: stable voltage ≤ 0.5%, constant current ≤ 1%.
● Ripple voltage: total ripple voltage Vpp≤1%;
● Machine efficiency: ≥ 90%.

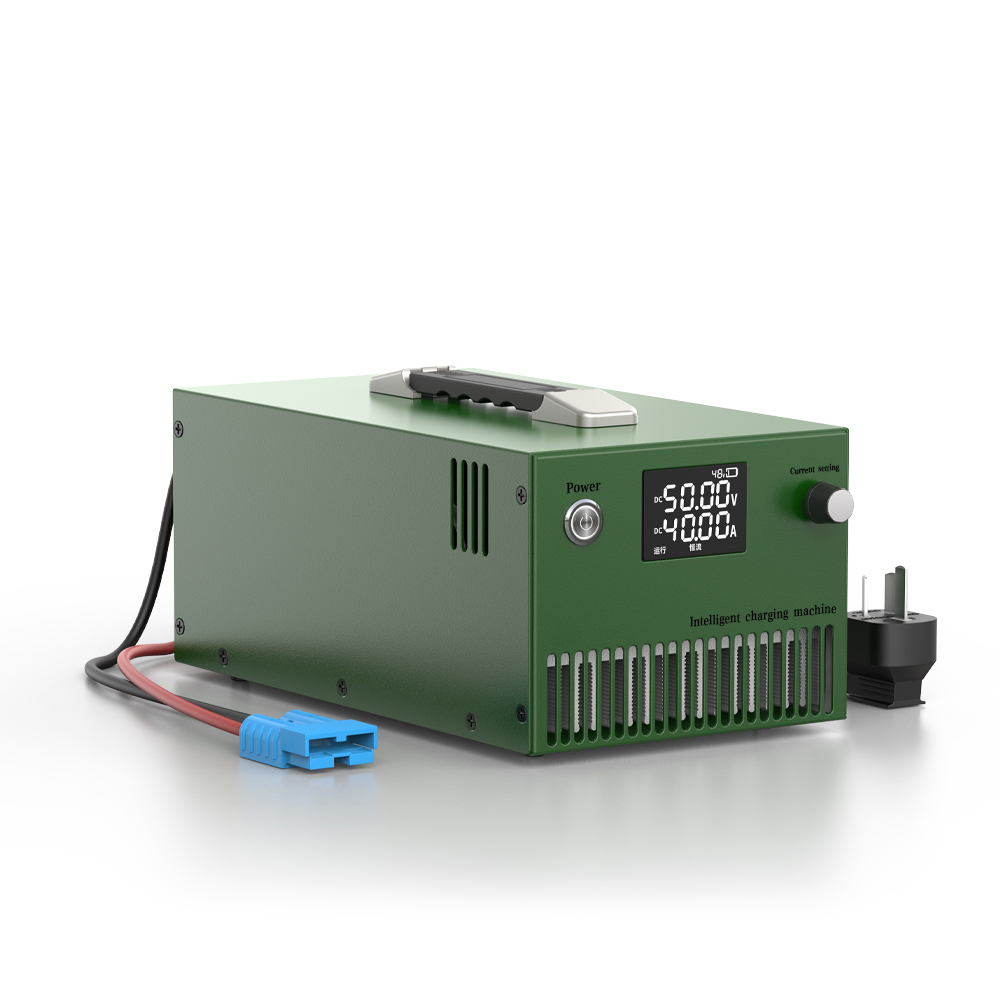

● Parameter display: 46*33mm HD LCD LCD display.
● Display parameters: charging voltage, charging current, battery power, charging state, etc.
● Charging process: Power on - judge the battery voltage - automatically open the output - charge according to the charging curve - automatically cut off the output after full.
● Suitable for battery types: lithium-ion battery, lead-acid battery, nickel-cadmium battery, nickel-metal hydride battery.
● Protection: output overvoltage, overload, short circuit, battery reverse connection, current rise delay, charging head anti-ignition, overtemperature protection of the whole machine, overtemperature protection threshold: (70 ~ 80)℃.

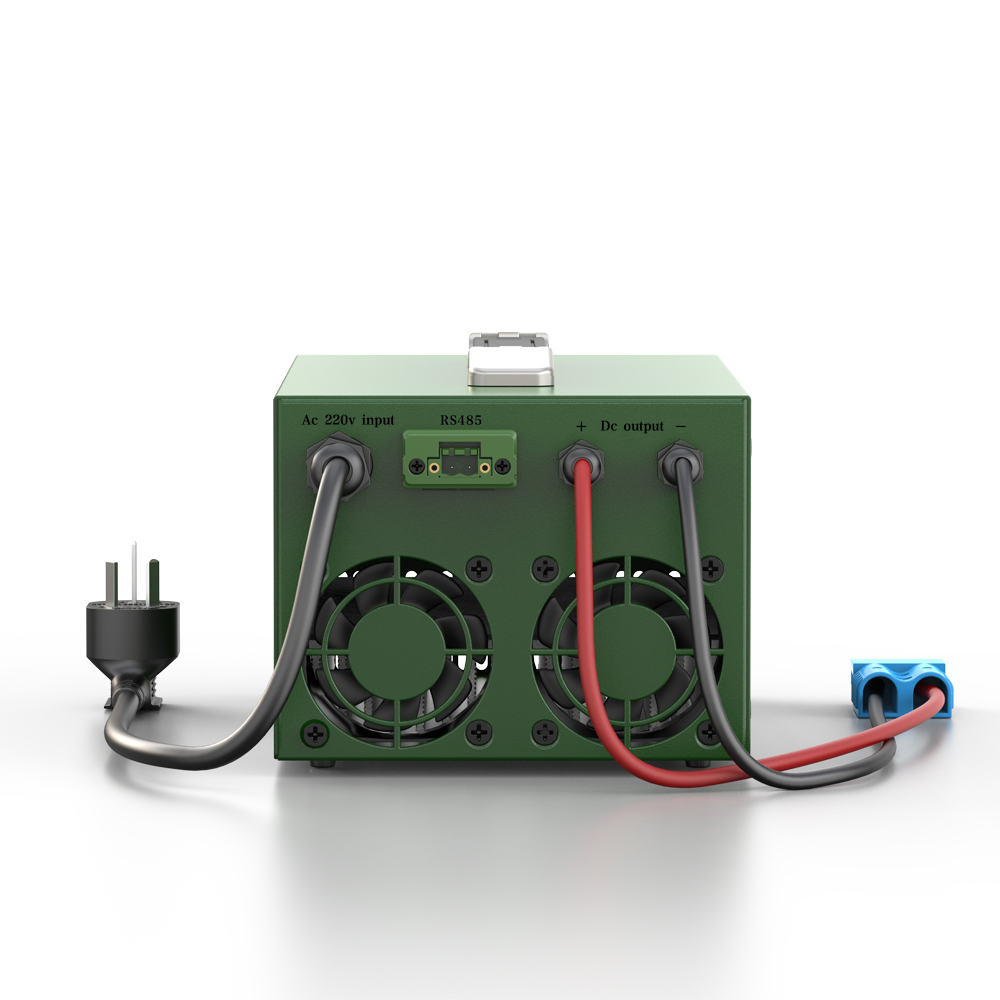

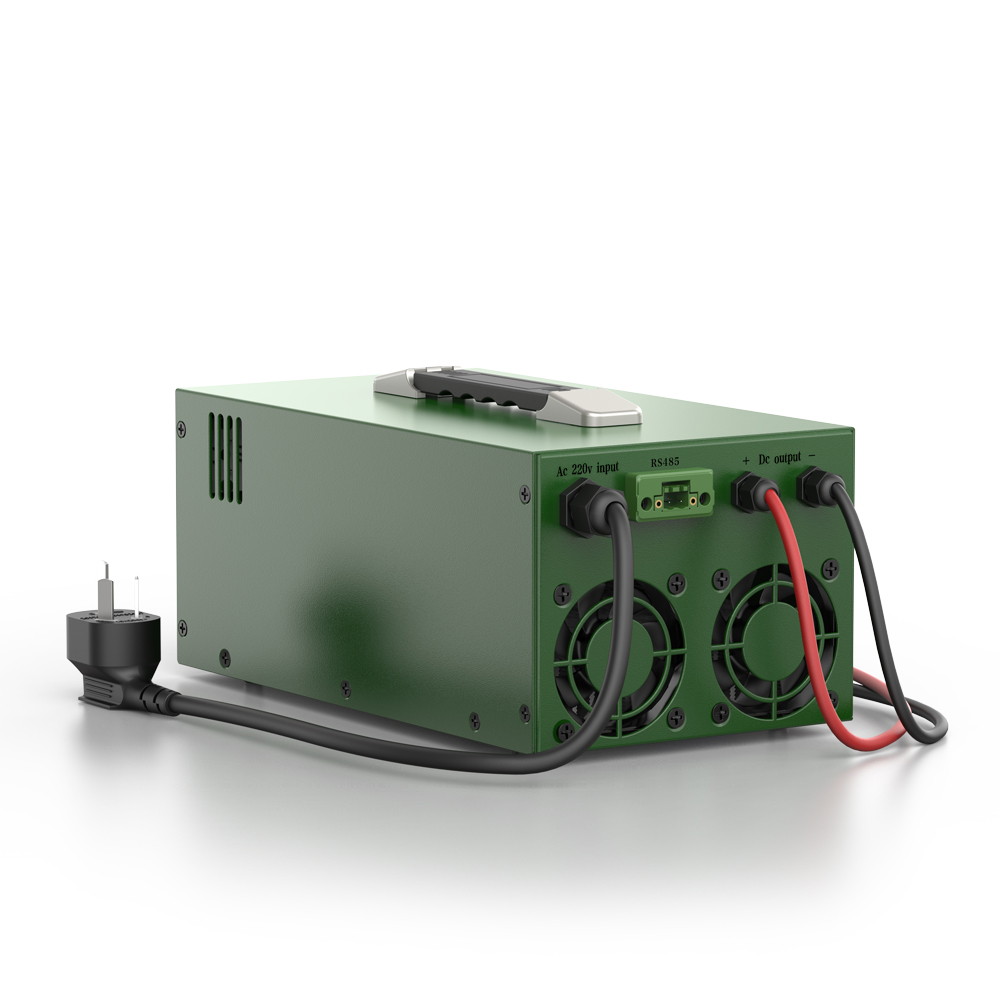

● Communication interface: RS485\RS232\CAN optional.
● Fault warning mode: When a fault occurs, it automatically shuts down and generates an alarm.
● Setting mode: digital encoder type, setting value with power down memory.
● Insulation strength:
Input-output: AC1500V, 10mA, 1 min;
Input - Housing: AC1500V, 10mA, 1 minute;
Output - Case: AC1500V, 10mA, 1 minute.
● Operating environment requirements: indoor, altitude ≤2000 meters, relative humidity: ≤80% (non-condensing),
Ambient temperature (-15 ~ 45)℃, pollution degree: 2.
● Storage environment requirements: indoor, relative humidity: ≤80%, ambient temperature: (-20 ~ 70)℃.
● Size: Width 140* height 100* depth 260mm.
● Weight: about 4kg.
